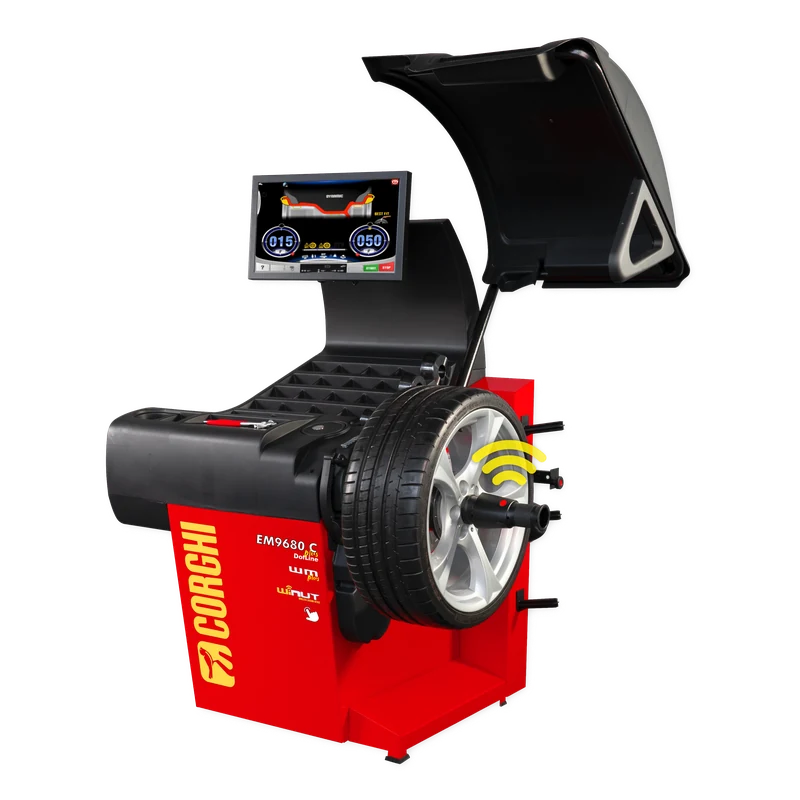

EM9680/EM9680C-WN-TOUCH
The graphic interface and touchscreen technology simplify and speed up operations and work programme selection.
The wireless WINUT device activates wheel clamping from a single button on the sleeve, with no pedal. The result: up to 20% less working time and up to 30% fewer counterweights.
Description
| Balancing speed | 75 – 85 – 98 rpm |
| Weight accuracy | 1 g – 0.0353 oz |
| Spin Cycle | 5.5 sec (14 kg wheel) |
| Settable rim width | 1.5” to 20” |
| Settable rim diameter | 1” to 35” |
| Measurable rim diameter | 10” to 28” |
| Max Tire width | 23.6” |
| Max Tire diameter | 44” |
| Max wheel weight | 85 kg (187 lbs) |
| Shaft Diameter | 40 mm |
| WINUT device frequency | 2.4 GHz |
| Air requirement (EM9680C) | 7 to 10 bar (105 to 165 psi) |
| Power supply | 115÷230 V / 1ph 50/60 Hz |
